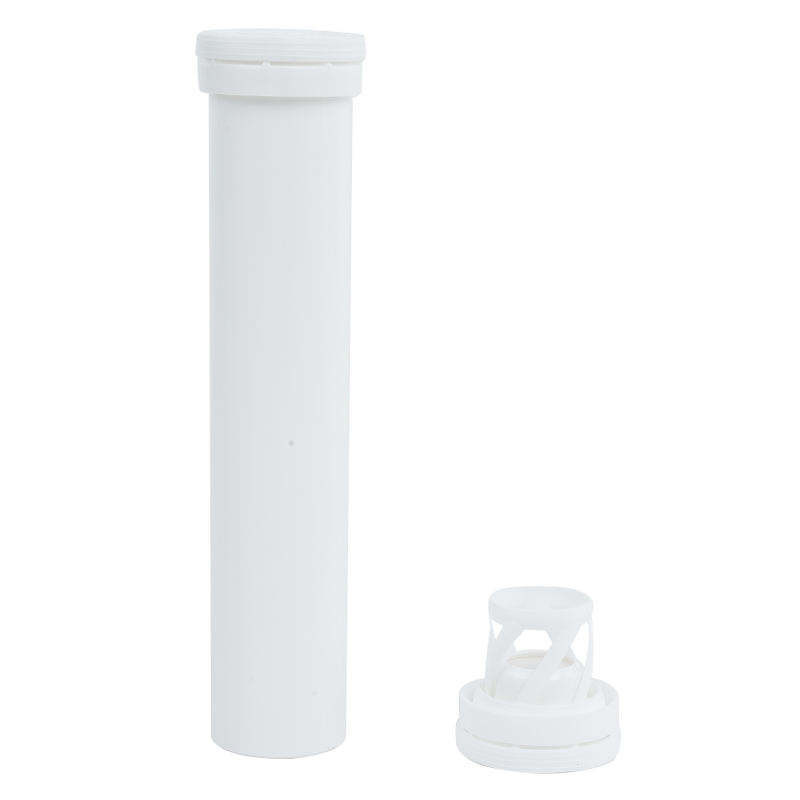

Plastic PP Tubes with Spiral lids for the packaging of effervescent tablets supplements

  • Plastic PP Tubes with Spiral lids for the packaging of effervescent tablets supplements
Place of Origin Shanghai, China
Brand Name JND
Certification FSSC 22000;ISO 9001;
Model Number VCB29T140
Minimum Order Quantity 50000 pieces
Price $0.09/pieces 10000-19999 pieces
Packaging Details PE bag +Paper carton Size:580*380*330mm for 350pcs tube; 380*290*460mm for 1500pcs cap including aluminum bag
Delivery Time 3-5days
Supply Ability 37500pcs for tube per day; 24000pcs for lid per day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Industrial Use Effervescent Tablet Of Vitamins, Minerals, Supplements Body Material PP
Lid Material PE Plastic Type PP
Logo Customized OEM Accept
Printing Hot Transfer Printing Or IML Material Food Grade PP
MOQ 50000 Molding Injection Molding
Product Name Food Grade PP Effervescent Tablet Tube With Lid Keyword Tubes Tablets Bottle With Flip Bouteille Vide En Plastique
Color Customized Lid Spiral With Desiccant
Leave a Message
Product Description

Product Specification:

  • As Below show the key AQL=0.65, Main AQL=2.5, Light AQL=4.0 under the standard of GB2828.1-2012



  • Inspect the function and size according to the special inspection level S-3, and inspect the appearance according to the general inspection level II





Type

 No. Item Specifications Inspection method AQL Type

Molding



1



 Appearance
  • Smooth surface, no obvious impurities, color particles and black spots
  • Under normal distance 30cm, normal light, no black spots, impurities
  • Uniform color, no mottled
 Visual Light
  2 Peculiar smell No peculiar smell different from the material itself. Complete structure injection mold in accordance with the standard sample Smell Main
  3 ￠29*140 Diameter 29.0±1.0mm caliper Main
      Height 140.0±1.0mm Height gauge Main
      Wall Thickness 1.0±0.4mm Caliper Main
  4 ￠29 Spiral Cap Diameter 28.0±0.8mm caliper Main
      Height 33.0±1.0mm Height gauge Main
Function 1 Sealing Property Filling nominal capacity of water into the tube and tighten the cap, then Horizontally placed in the ground without leakage after 4 hours. Visual Main
  2 Drop Property Filling nominal capacity of 20±5℃water into the tube and tighten the cap, then drop at 1.0m height, the bottom hits the cement flat ground, continuously dropping 3 times without rupture. Visual Main
  3 Thermo stability Filling 90 degrees of hot water into tube, and cover the cap, then move to the 60 degrees thermostat. After 30 minutes, observe that the product should not be deformed or ruptured Visual Main
Print 1 Drawing Color, Picture and Words same as standard sample According to standard sample Key
  2 Appearance The appearance of the printed product is clean no soiling and deformity refer to standard sample Visual Light
  3 Peel strength Use 3M600tape, smooth pull up the tape at an angle of 45 degrees no large area peeled off. Tape test Main
