PP Tubes With Flip Top Lids For Packaging Of Effervescent Tablets Color Customized
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | JND |
| Certification | FSSC 22000;ISO 9001; |
| Model Number | VCB29F60 |
| Minimum Order Quantity | 50000 pieces |
| Price | $0.072/pieces 10000-19999 pieces |
| Packaging Details | PE bag +Paper carton Size: 580*380*330mm for 800pcs tube; 380*290*460mm for 1500pcs cap including aluminum bag |
| Delivery Time | 3-5days |
| Supply Ability | 45000pcs for tube per day; 47000pcs for lid per day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Industrial Use | Effervescent Tablet Of Vitamins, Minerals, Supplements | Material | Food Grade PP |
|---|---|---|---|
| Body Material | PP | Lid Material | PE |
| Plastic Type | PP | Printing | Hot Transfer Printing Or IML |
| OEM | Accept | Logo | Customized |
| Volume | 31.0±1ml | Desiccant | Yes |
| Molding | Injection Molding | Product Name | Food Grade PP Effervescent Tablet Tube With Lid |
| Keyword | Tubes Tablets Bottle With Flip Top Lid | Color | Customized |
| Highlight | PP Tubes With Flip Top Lids,PP Tubes Effervescent Tablets Packaging |
||
Product Description
Product Specification:
- As Below show the key AQL=0.65, Main AQL=2.5, Light AQL=4.0 under the standard of GB2828.1-2012
- Inspect the function and size according to the special inspection level S-3, and inspect the appearance according to the general inspection level II
| Type | No. | Item | Specifications | Inspection method | AQL Type | |
Molding
| 1
| Appearance |
| Visual | Light | |
| 2 | Peculiar smell | No peculiar smell different from the material itself. Complete structure injection mold in accordance with the standard sample | Smell | Main | ||

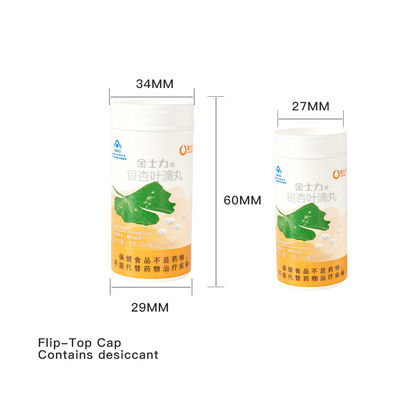

| 3 | ￠29*60 | Diameter | 29.0±1.0mm | caliper | Main | |
| Height | 60.0±1.0mm | Height gauge | Main | |||
| Wall Thickness | 1.0±0.4mm | caliper | Main | |||
| 4 | ￠29 Flip-top cap | Diameter | 29.0±0.8mm | caliper | Main | |
| Height | 15.0±1.0mm | Height gauge | Main | |||
| Function | 1 | Sealing Property | Filling nominal capacity of water into the tube and tighten the cap, then Horizontally placed in the ground without leakage after 4 hours. | Visual | Main | |
| 2 | Drop Property | Filling nominal capacity of 20±5℃water into the tube and tighten the cap, then drop at 1.0m height, the bottom hits the cement flat ground, continuously dropping 3 times without rupture. | Visual | Main | ||
| 3 | Thermo stability | Filling 90 degrees of hot water into tube, and cover the cap, then move to the 60 degrees thermostat. After 30 minutes, observe that the product should not be deformed or ruptured | Visual | Main | ||
| 1 | Drawing | Color, Picture and Words same as standard sample | According to standard sample | Key | ||
| 2 | Appearance | The appearance of the printed product is clean no soiling and deformity refer to standard sample | Visual | Light | ||
| 3 | Peel strength | Use 3M600tape, smooth pull up the tape at an angle of 45 degrees no large area peeled off. | Tape test | Main | ||
