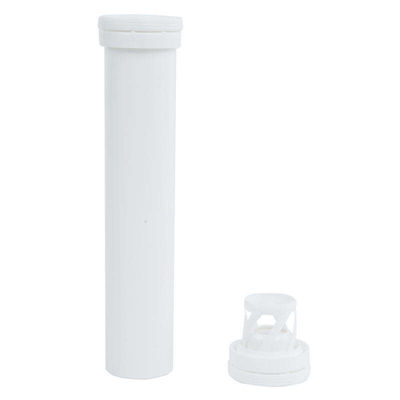

Empty Food Grade PP 29mm OD and 144mm Height Tube for Tablet Packaging with desiccant

Brand Name:	JND
Model Number:	VCB29T144
MOQ:	50000 units
Price:	$0.08/unit without printing
Packaging Details:	PE bag +Paper carton Size: 595400350mm for 550pcs tube; 595400350mm for 1500pcs cap

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Certification:

FSSC 22000;ISO 9001;

Application:

Effervescent Tablet Of Vitamins, Minerals, Supplements

Boday Material:

Cap Material:

Plastic Type:

Print Color:

6 Colors MAX

Printing:

Hot Transfer Printing Or In-mold-labelling

Material:

Food Grade PP

50000 Units

Molding:

Injection Molding

Product Name:

Food Grade PP Effervescent Tablet Tube With Lid

Spiral Cap With Desiccant

Color:

Customized

Shape:

Cylinder

Supply Ability:

27000 units per day

Product Description

※Product Description

Introducing our Empty Food Grade PP 29mm OD and 144mm Height Tube for Tablet Packaging, designed to meet the highest standards of quality and convenience. Crafted from premium food-grade polypropylene, this tube ensures exceptional durability and safety, ideal for preserving the integrity of your tablets. Its 29mm outer diameter and 144mm height offer ample space for a variety of tablet sizes, while the secure closure system helps maintain freshness.

The inclusion of a desiccant within the tube effectively combats moisture, protecting your tablets from deterioration and ensuring they remain potent and effective. This tube's sleek, compact design also makes it easy to handle and store, providing a practical solution for both small and large quantities. With its combination of robust material, effective moisture control, and user-friendly design, our tube stands out as the ideal choice for your tablet packaging needs.

1. Product Size

JND Code	Tube Height(mm)	Neck Outside(mm)	Neck Inside(mm)	Cap Diameter(mm)	Desiccant Weight(g)
VCB29T144	144	29	27	34	2.1

2. Technical Specification

Type	No.	Item	Specifications		Inspection method	AQL Type
Molding	1	Appearance	Smooth surface, no obvious impurities, color particles and black spots Under normal distance 30cm, normal light, no black spots, impurities Uniform color, no mottled		Visual	Light
	2	Peculiar smell	No peculiar smell different from the material itself. Complete structure injection mold in accordance with the standard sample		Smell	Main
	3	￠29*144	Diameter	29.0±1.0mm	caliper	Main
			Height	144.0±1.0mm	Height gauge	Main
			Wall Thickness	1.0±0.4mm	Caliper	Main
Function	1	Sealing Property	Filling nominal capacity of water into the tube and tighten the cap, then Horizontally placed in the ground without leakage after 4 hours.		Visual	Main
	2	Drop Property	Filling nominal capacity of 20±5℃water into the tube and tighten the cap, then drop at 1.0m height, the bottom hits the cement flat ground, continuously dropping 3 times without rupture.		Visual	Main
	3	Thermo stability	Filling 90 degrees of hot water into tube, and cover the cap, then move to the 60 degrees thermostat. After 30 minutes, observe that the product should not be deformed or ruptured		Visual	Main
Print	1	Drawing	Color, Picture and Words same as standard sample		According to standard sample	Key
	2	Appearance	The appearance of the printed product is clean no soiling and deformity refer to standard sample		Visual	Light
	3	Peel strength	Use 3M600tape, smooth pull up the tape at an angle of 45 degrees no large area peeled off.		Tape test	Main

3. Storage:

Keep in a cool, dry and ventilated place. Not in sunlight, rain, near the heat source, exposed to high temperature, high humidity environment (normal temperature storage, humidity > 65%)
Need to pad higher, away from the ground and wall 10cm above. no pressure
