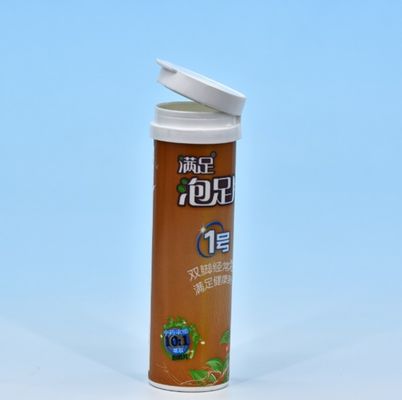

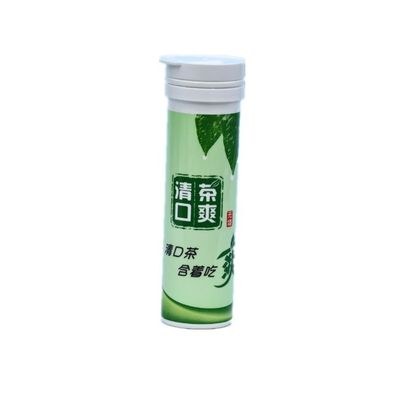

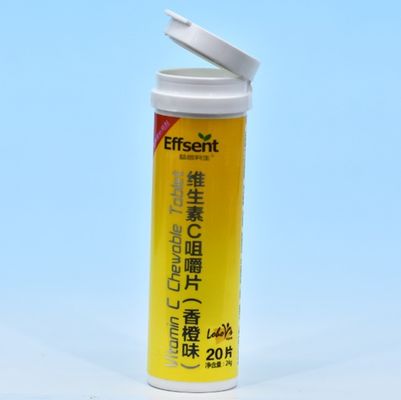

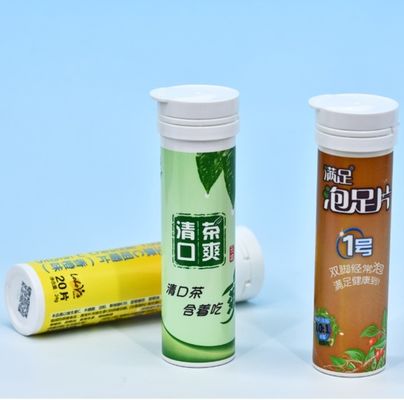

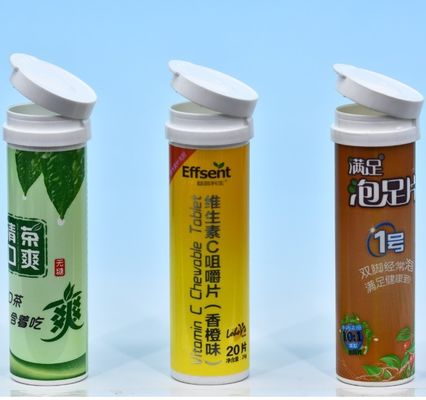

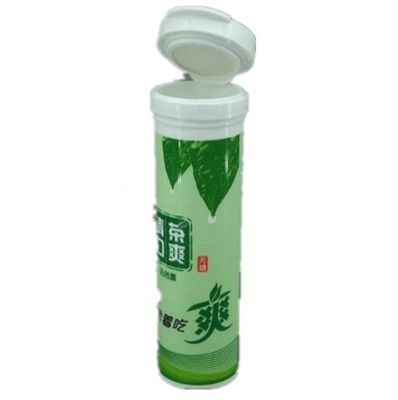

Plastic PP Tubes with or without Desiccant Spiral Lids for the packaging of supplements

  • Plastic PP Tubes with or without Desiccant Spiral Lids for the packaging of supplements
  • Plastic PP Tubes with or without Desiccant Spiral Lids for the packaging of supplements
  • Plastic PP Tubes with or without Desiccant Spiral Lids for the packaging of supplements
  • Plastic PP Tubes with or without Desiccant Spiral Lids for the packaging of supplements
  • Plastic PP Tubes with or without Desiccant Spiral Lids for the packaging of supplements
  • Plastic PP Tubes with or without Desiccant Spiral Lids for the packaging of supplements
Place of Origin Anhui, China
Brand Name JND
Certification FSSC 22000; ISO 9001;
Model Number VCB24T104
Minimum Order Quantity 50000 pieces
Price $0.067/pieces 10000-19999 pieces
Packaging Details PE bag +Paper carton Size:580*380*330mm for 700pcs tube;580*380*330mm for 3500pcs lid
Delivery Time 3-5days
Supply Ability 50000pcs for tube per day; 30000pcs for lid per day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Industrial Use Personal Care Use Other Personal Care, Packaging
Material Food Grade PP Molding Injection Molding
Color Custom Color Logo Custermized
OEM Accept Lid Material PE
Sample Free Of Charge Usage Medicine Tube
Product Name Effervescent Tablet Tube With Spiral Lid Keyword Packaging Plastic Bottle
Leave a Message
Product Description

Product Specification:



  • As Below show the key AQL=0.65, Main AQL=2.5, Light AQL=4.0 under the standard of GB2828.1-2012



  • Inspect the function and size according to the special inspection level S-3, and inspect the appearance according to the general inspection level II



Type No. Item Specifications Inspection method AQL Type

Molding



1



 Appearance
  • Smooth surface, no obvious impurities, color particles and black spots
  • Under normal distance 30cm, normal light, no black spots, impurities
  • Uniform color, no mottled
 Visual Light
  2 Peculiar smell No peculiar smell different from the material itself. Complete structure injection mold in accordance with the standard sample Smell Main
  3 ￠24*104 Diameter 24.0±1.0mm caliper Main
      Height 104.0±1.0mm Height gauge Main
      Wall Thickness 1.0±0.4mm Caliper Main
      Height 33.0±1.0mm Height gauge Main
  4 ￠24 Spiral Cap Diameter 22.0±0.8mm caliper Main
      Height 27.0±1.0mm Height gauge Main
Function 1 Sealing Property Filling nominal capacity of water into the tube and tighten the cap, then Horizontally placed in the ground without leakage after 4 hours. Visual Main
  2 Drop Property Filling nominal capacity of 20±5℃water into the tube and tighten the cap, then drop at 1.0m height, the bottom hits the cement flat ground, continuously dropping 3 times without rupture. Visual Main
  3 Thermo stability Filling 90 degrees of hot water into tube, and cover the cap, then move to the 60 degrees thermostat. After 30 minutes, observe that the product should not be deformed or ruptured Visual Main
Print 1 Drawing Color, Picture and Words same as standard sample According to standard sample Key
  2 Appearance The appearance of the printed product is clean no soiling and deformity refer to standard sample Visual Light
  3 Peel strength Use 3M600tape, smooth pull up the tape at an angle of 45 degrees no large area peeled off. Tape test Main
