Name: PP Tubes with Flip Top lids for the packaging of effervescent tablets color customized
Brand: JND Packaging
SKU: VCB29F60
Price: 4,999.07 USD
Availability: InStock

Brand Name:	JND
Model Number:	VCB29F60
MOQ:	50000 pieces
Price:	$0.072/pieces 10000-19999 pieces
Packaging Details:	PE bag +Paper carton Size: 580380330mm for 800pcs tube; 380290460mm for 1500pcs cap including aluminum bag

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Certification:

FSSC 22000;ISO 9001;

Industrial Use:

Effervescent Tablet Of Vitamins, Minerals, Supplements

Material:

Food Grade PP

Body Material:

Lid Material:

Plastic Type:

Printing:

Hot Transfer Printing Or IML

OEM:

Logo:

Customized

Volume:

31.0±1ml

Desiccant:

Yes

Molding:

Injection Molding

Product Name:

Food Grade PP Effervescent Tablet Tube With Lid

Keyword:

Tubes Tablets Bottle With Flip Top Lid

Color:

Customized

Supply Ability:

45000pcs for tube per day; 47000pcs for lid per day

Product Description

Product Specification:

As Below show the key AQL=0.65, Main AQL=2.5, Light AQL=4.0 under the standard of GB2828.1-2012

Inspect the function and size according to the special inspection level S-3, and inspect the appearance according to the general inspection level II

Type	No.	Item	Specifications		Inspection method	AQL Type
Molding	1	Appearance	Smooth surface, no obvious impurities, color particles and black spots Under normal distance 30cm, normal light, no black spots, impurities Uniform color, no mottled		Visual	Light
	2	Peculiar smell	No peculiar smell different from the material itself. Complete structure injection mold in accordance with the standard sample		Smell	Main

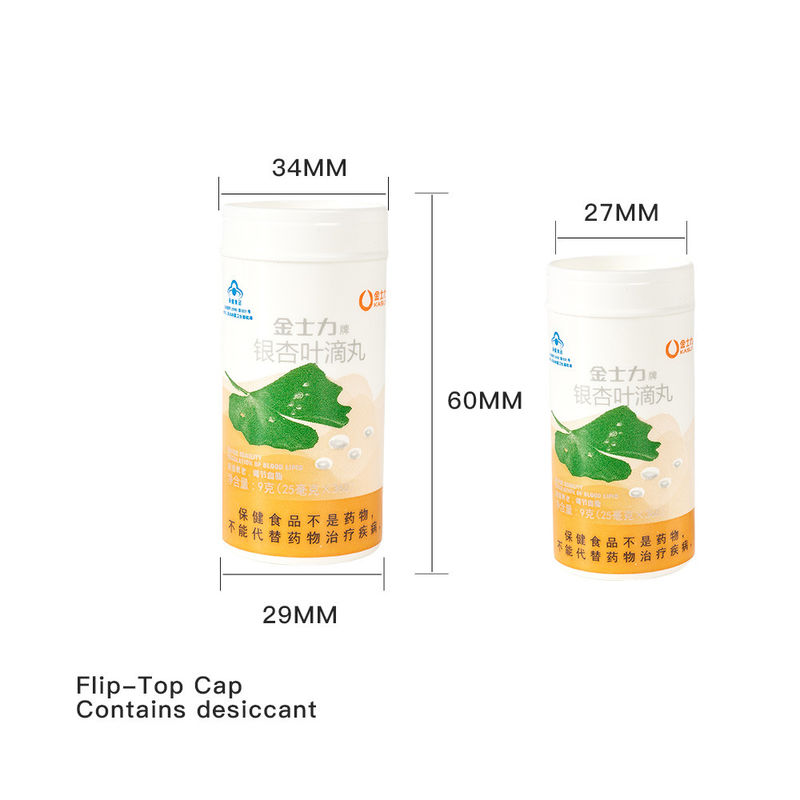

	3	￠29*60	Diameter	29.0±1.0mm	caliper	Main
			Height	60.0±1.0mm	Height gauge	Main
			Wall Thickness	1.0±0.4mm	caliper	Main
	4	￠29 Flip-top cap	Diameter	29.0±0.8mm	caliper	Main
	4	￠29 Flip-top cap	Height	15.0±1.0mm	Height gauge	Main
Function	1	Sealing Property	Filling nominal capacity of water into the tube and tighten the cap, then Horizontally placed in the ground without leakage after 4 hours.		Visual	Main
	2	Drop Property	Filling nominal capacity of 20±5℃water into the tube and tighten the cap, then drop at 1.0m height, the bottom hits the cement flat ground, continuously dropping 3 times without rupture.		Visual	Main
	3	Thermo stability	Filling 90 degrees of hot water into tube, and cover the cap, then move to the 60 degrees thermostat. After 30 minutes, observe that the product should not be deformed or ruptured		Visual	Main
Print	1	Drawing	Color, Picture and Words same as standard sample		According to standard sample	Key
	2	Appearance	The appearance of the printed product is clean no soiling and deformity refer to standard sample		Visual	Light
	3	Peel strength	Use 3M600tape, smooth pull up the tape at an angle of 45 degrees no large area peeled off.		Tape test	Main
